DC motor, Taiwan DC motor, AC motor, Taiwan AC motor

Type

Dimension Figure
(Figure in bracket is for shape view of screw gear shaft)

UNIT : mm

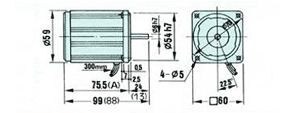

2IK6A-A

2IK6A-C

2IK6GN-A

2IK6GN-C

2RK6A-A

2RK6A-C

2RK6GN-A

2RK6GN-C

GN

Module: 0.5

Pressure Angle: 20^o

Screw Angle: 26^o

Gear Number: 8

External Diameter: Φ5.5

Weight: 0.7kg

Plane Key: 1x10l

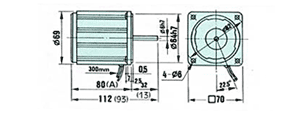

3IK15A-A

3IK15A-C

3IK15GN-A

3IK15GN-C

3RK15A-A

3RK15A-C

3RK15GN-A

3RK15GN-C

GN

Module: 0.5

Pressure Angle: 20^o

Screw Angle: 23^o

Gear Number: 10

External Diameter: Φ6.6

Weight: 1.1kg

Plane Key: 1x15l

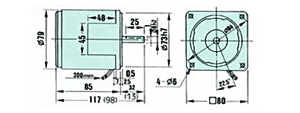

4IK25A-A

4IK25A-C

4IK25A-S

4IK25A-U

4IK25GN-A

4IK25GN-C

4IK25GN-S

4IK25GN-U

4RK25A-A

4RK25A-C

4RK25GN-A

4RK25GN-C

GN

Module: 0.5

Pressure Angle: 20^o

Screw Angle: 23^o

Gear Number: 9

External Diameter: Φ7.9

Weight: 1.5kg

Plane Key: 1x25l

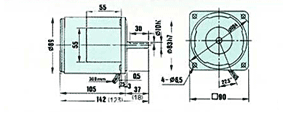

5IK40A-A

5IK40A-C

5IK40A-S

5IK40A-U

5IK40GN-A

5IK40GN-C

5IK40GN-S

5IK40GN-U

5RK40A-A

5RK40A-C

5RK40GN-A

5RK40GN-C

GN

Module: 0.6

Pressure Angle: 20^o

Screw Angle: 23^o

Gear Number: 11

External Diameter: Φ8.9

Weight: 2.5kg

Plane Key: 1x30l

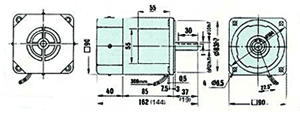

5IK60A-AF

5IK60A-CF

5IK60A-SF

5IK60A-UF

5IK60GN(GX)-AF

5IK60GN(GX)-CF

5IK60GN(GX)-SF

5IK60GN(GX)-UF

5IK60A-AF

5IK60A-CF

5IK60GN(GX)-AF

5IK60GN(GX)-CF

GN	GX
Module: 0.6	0.8
Pressure Angle: 20^o	20^o
Screw Angle: 25^o	23^o
Gear Number: 11	11
External Diameter: Φ8.9	Φ11.8
Weight: 2.7kg	2.7kg
Plane Key: 1x30l

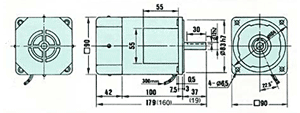

5IK90A-AF

5IK90A-CF

5IK90A-SF

5IK90A-UF

5IK90GX-A(C)-F

5IK90GX-SF

5IK90GX-UF

5IK120A-AF

5IK120A-CF

5IK120GX-A(C)-F

GN

Module: 0.8

Pressure Angle: 20^o

Screw Angle: 23^o

Gear Number: 11

External Diameter: Φ11.8

Weight: 3.2kg

Plane Key: 1x30l
